Fits 2014-2019* (*Classic body only) GM Silverado/Sierra 1500 4.3L & 5.3L engines. - Moderate sound

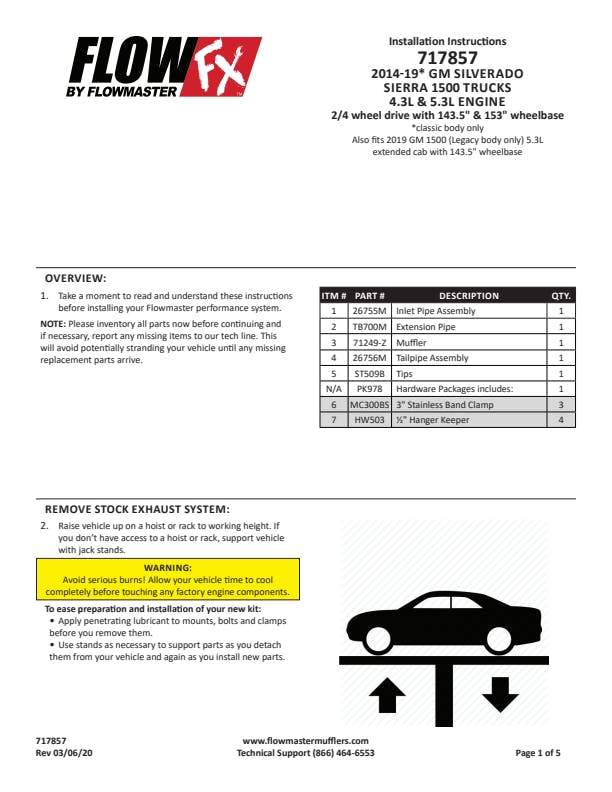

Introducing the new Flow FX® Cat-back exhaust system for 2014-2019*(*Classic body 5.3L, 4wd w/143.5-inch wb) GM Silverado/Sierra 4.3L and 5.3L engines. This performance exhaust system fits both 2/4 Wheel drive models with 143.5 and 153-inch wheelbases and is manufactured from 409S stainless steel for years of trouble-free service. Features include 3.00-inch inlet pipe leading into a Flow FX "straight-through" muffler for great sound and maximum performance. The single 3.00-inch mandrel-bent tailpipe exits out behind the rear passenger side tire and is finished off with large 4.50-inch diameter black ceramic coated 304S stainless steel tip, giving your Silverado/Sierra that custom look that goes hand in hand with the deep performance sound of the Flow FX muffler. The system uses all the factory hanger locations and connections for an easy installation that you can do at home. Includes installation instructions and all necessary hardware.
- Large 4.50-inch Stainless Steel Black Ceramic Coated Tip
- Deep Powerful Tone Inside and Outside the Vehicle
- Flow FX "Straight-through" Performance Muffler
- Uses the Factory Hanger Locations
- Full Stainless Steel Construction
- Lifetime Limited Warranty
- Easy Installation
Information:
Fits 2014-2018 GM Silverado/Sierra 1500 4.3L & 5.3L engines, 2/4 Wheel Drive, 143.5 and 153-inch Wheelbases - Also fits 2019 GM 1500 (Legacy body only) 5.3L, 4WD, extended cab w/143.5-inch Wheelbase
Application Summary:
| Year |
Make/Model |
| 2014-2018 |
Chevrolet Silverado 1500 |
| 2019 |
Chevrolet Silverado 1500 LD |
| 2014-2018 |
GMC Sierra 1500 |
| 2019 |
GMC Sierra 1500 Limited |
| Attributes |
| Brand |
Flowmaster, Flowmaster |
| C.A.R.B EO # |
No |
| California Proposition 65 |
Yes |
| CARB (California) Compliant |
Yes |
| CARB EO |
No |
| Catalytic Converter Included |
No |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust, Exhaust |
| Clamping Type |
Flat Band, Flat Band |
| Clamps Included |
Yes, Yes |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
FlowFX, FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.50, 4.50 |
| Exhaust Tip Finish |
Black Ceramic Coating, Black Ceramic Coating |
| Exhaust Tip Length |
11.00 |
| Exhaust Tip Material |
304 Stainless Steel, 304 Stainless Steel |
| Exhaust Tip Quantity |
1, 1 |
| Exhaust Type |
Cat-Back |
| Exit Position |
Single Side, Single Out Side |
| Finish |
Natural, Natural |
| Gasket Or Seal Included |
No, No |
| Grade Type |
Performance, Performance |
| Hangers Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3.000 in. |
| Inlet Type |
Clamp-On, Clamp-On |
| Life Cycle Status Code |
Available to Order |
| Material |
Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Mounting Bracket Included |
No, No |
| Muffler Body Height |
4.00 |
| Muffler Body Length |
18.00 |
| Muffler Body Material |
409 Stainless Steel, 409 Stainless Steel |
| Muffler Body Shape |
Oval, Oval |
| Muffler Body Width |
9.00 |
| Muffler Flanged Inlet |
No, No |
| Muffler Flanged Outlet |
No, No |
| Muffler Included |
Yes |
| Muffler Inlet Diameter |
3, 3.00 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Outlet Diameter |
3, 3.00 |
| Muffler Outlet Quantity |
1, 1 |
| Muffler Quantity |
1, 1 |
| Muffler Series |
FlowFX, FlowFX |
| Muffler Type |
Absorption, Absorption |
| NAFTA Preference Criterion Code |
B |
| Part Type |
Exhaust System Kit, Exhaust System |
| Pipe Color |
Silver, Silver |
| Pipe Material |
409 Stainless Steel, Stainless Steel |
| Product Type |
Cat-Back Exhaust, Exhaust System |
| Sale Category |
Exhaust |
| SDR Required Flag |
N |
| Series |
FlowFX Exhaust Kits |
| Single Dual |
Single |
| Sound Level |
Moderate, Moderate |
| Spring Bolt Kit Included |
No, No |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat-back |
| Tail Pipe Diameter |
3.000 in. |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tail Pipe Quantity |
1, Single |
| Tail Pipe Tapered Outlet |
No, No |
| Tip Cut |
Angle |
| Tip Diameter |
4.500 in., 4.5 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
11, 11.00 |
| Tip Logo |
Embossed, Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Shape |
Round |
| Tip Style |
Single Wall |
| Tubing Diameter |
3.000 in., 3.00 |
| Tubing Diameter (IN) |
3 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Type |
Cat-Back, Cat-Back |
| Valve Included |
No, No |
| Valve Type |
Not Applicable, Not Applicable |
| Warning |
California Proposition 65, California Proposition 65 |
| GTIN |
00700042039173 |
